MEDICAL GAS CYLINDER VALVES, REGULATORS AND SOCKETS

ÖZSOY PRES MEDICAL GAS CYLINDER VALVES, REGULATORS AND SOCKETS
PRODUCTS

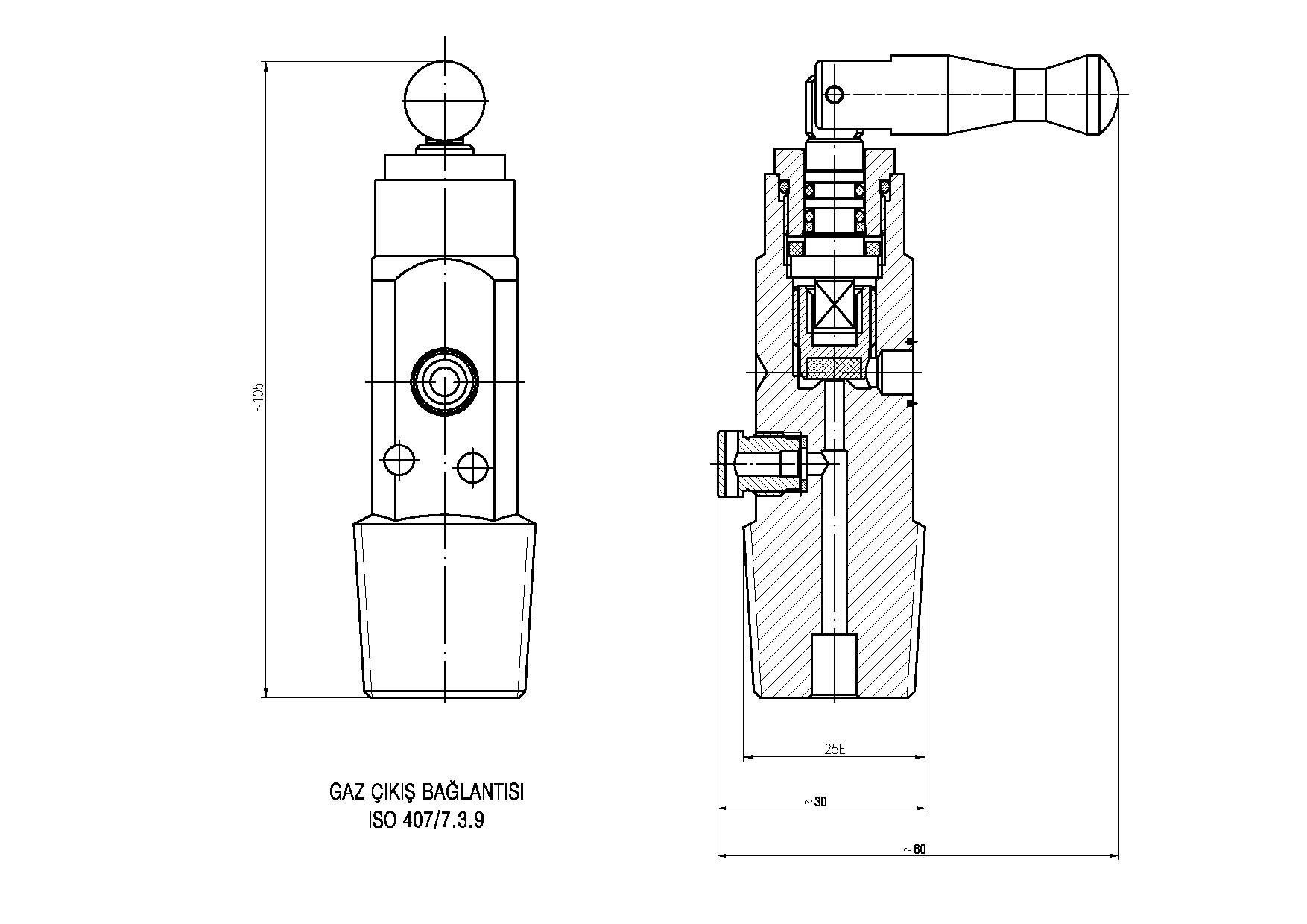

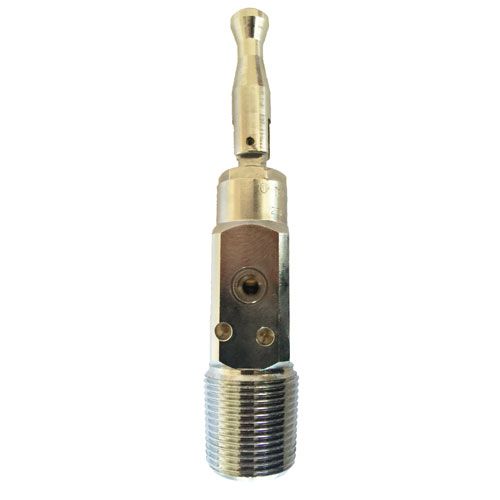

 PIN INDEX PRESSURİZED AİR VALVE 901.20

Code No. : 901.20
Specifications
INLET CONNECTION : 25E
OUTLET CONNECTION : ISO 407/7.3.9

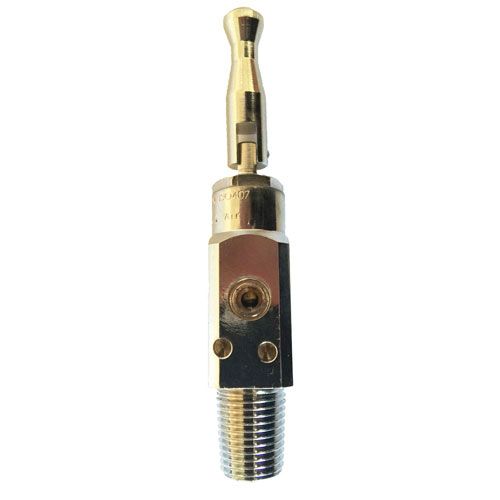

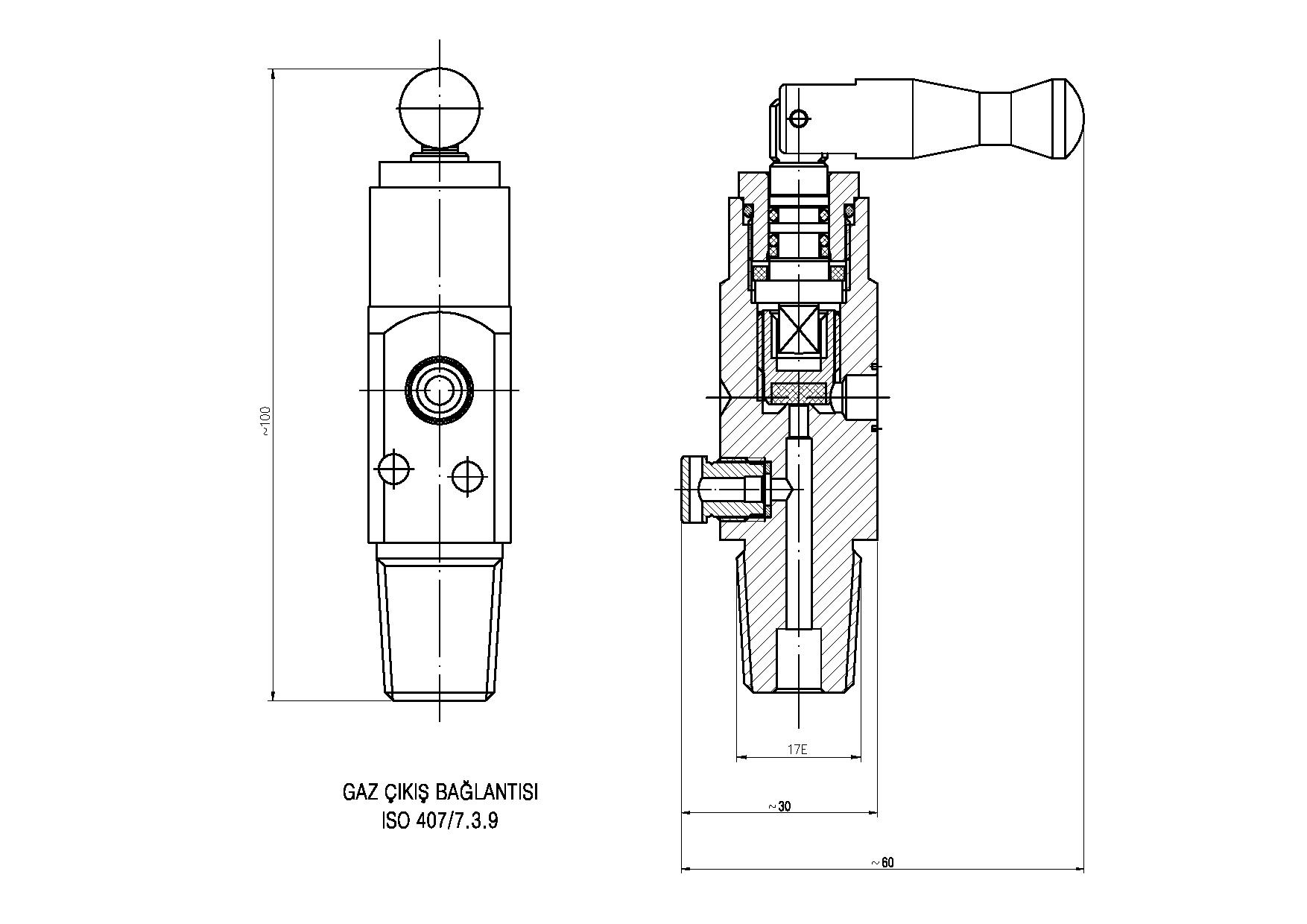

PIN INDEX PRESSURİZED AİR VALVE 901.19

Code No. : 901.19
Specifications
INLET CONNECTION : 17E
OUTLET CONNECTION : ISO 407/7.3.9

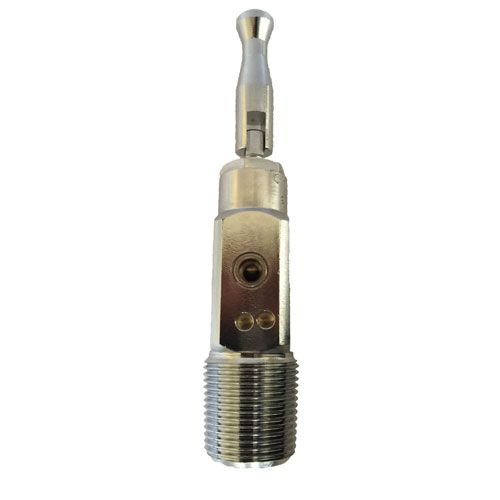

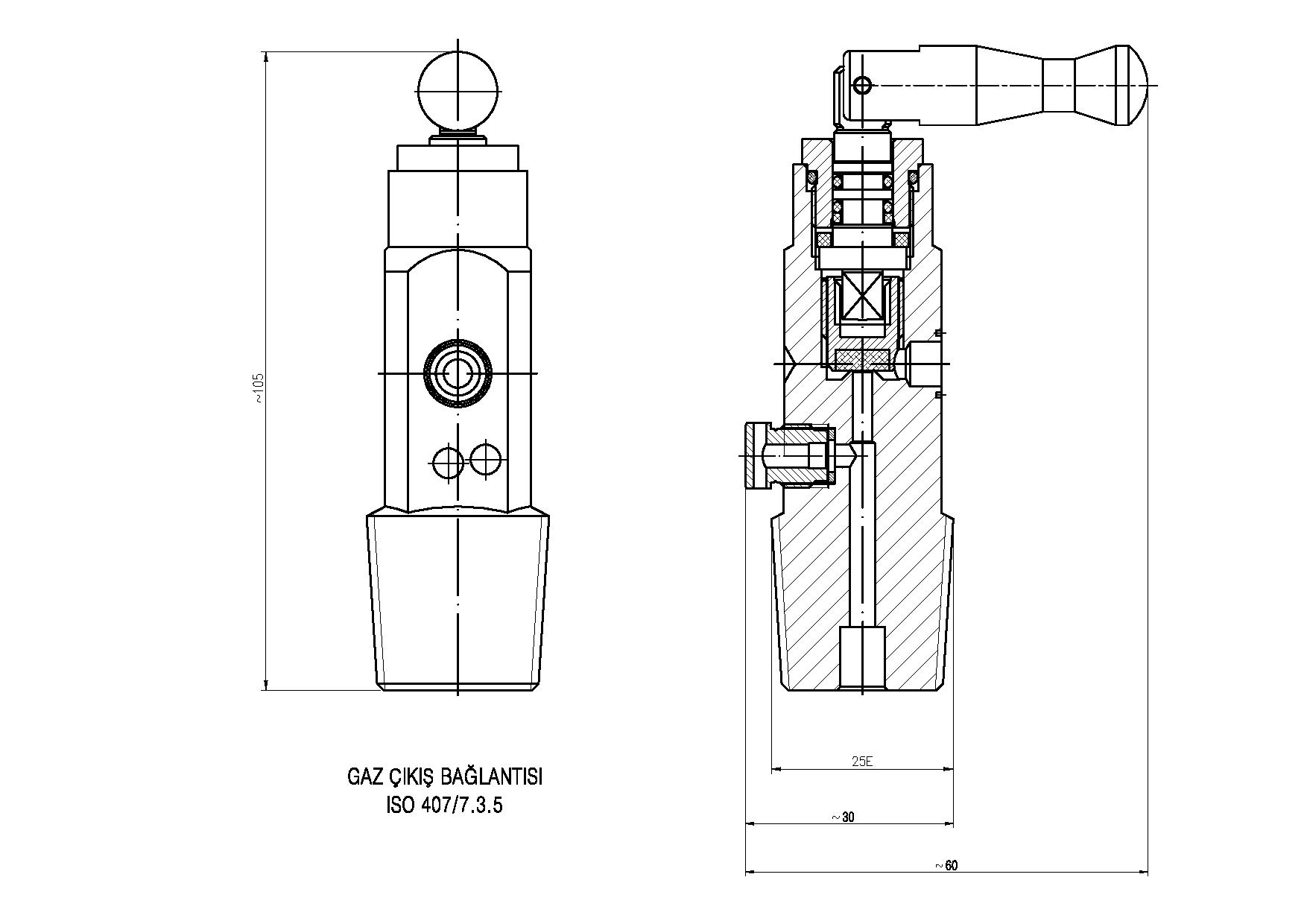

PIN INDEX PROTOXİDE VALVE 901.18

Code No. : 901.18
Specifications
INLET CONNECTION : 25E
OUTLET CONNECTION : ISO 407/7.3.5

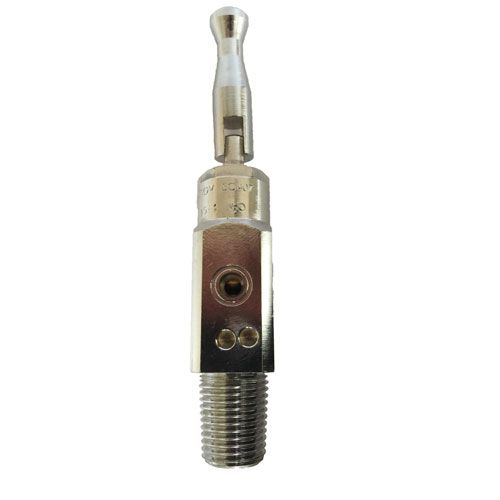

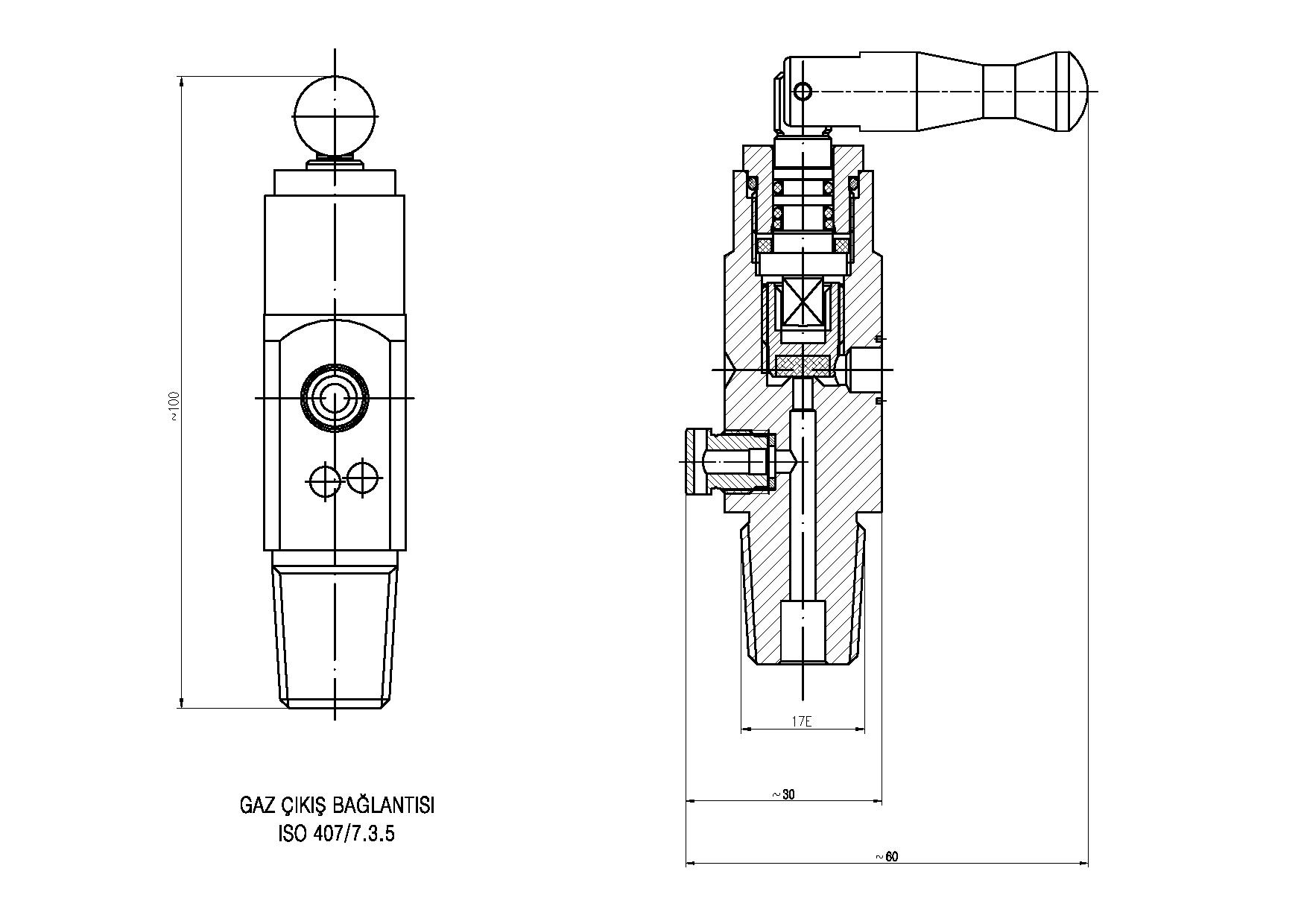

PIN INDEX PROTOXİDE VALVE 901.17

Code No. : 901.17
Specifications
INLET CONNECTION : 17E
OUTLET CONNECTION : ISO 407/7.3.5

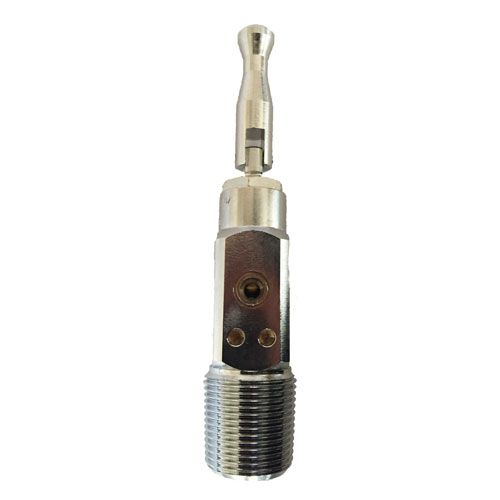

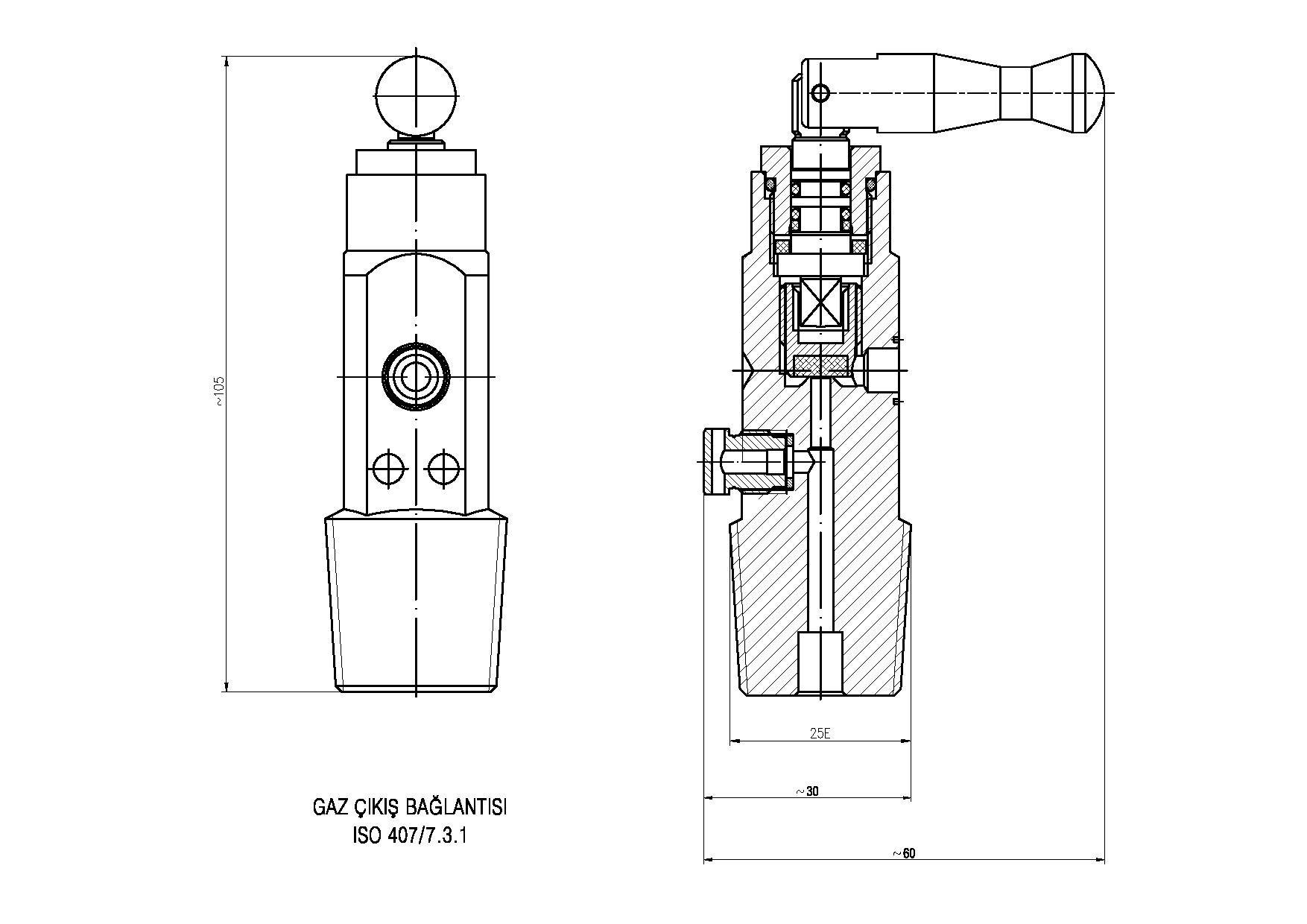

PIN INDEX OXYGEN VALVE 901.12

Code No. : 901.12
Specifications
INLET CONNECTION : 25E
OUTLET CONNECTION : ISO 407/7.3.1

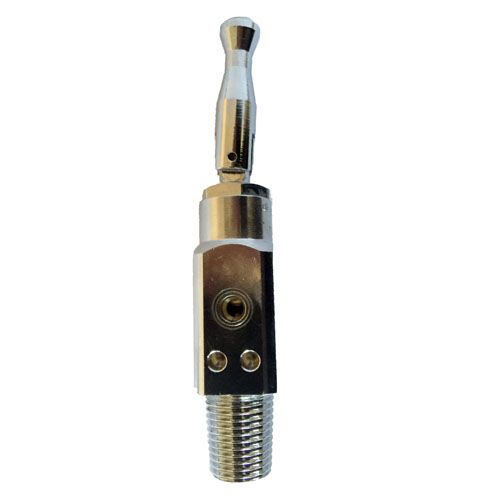

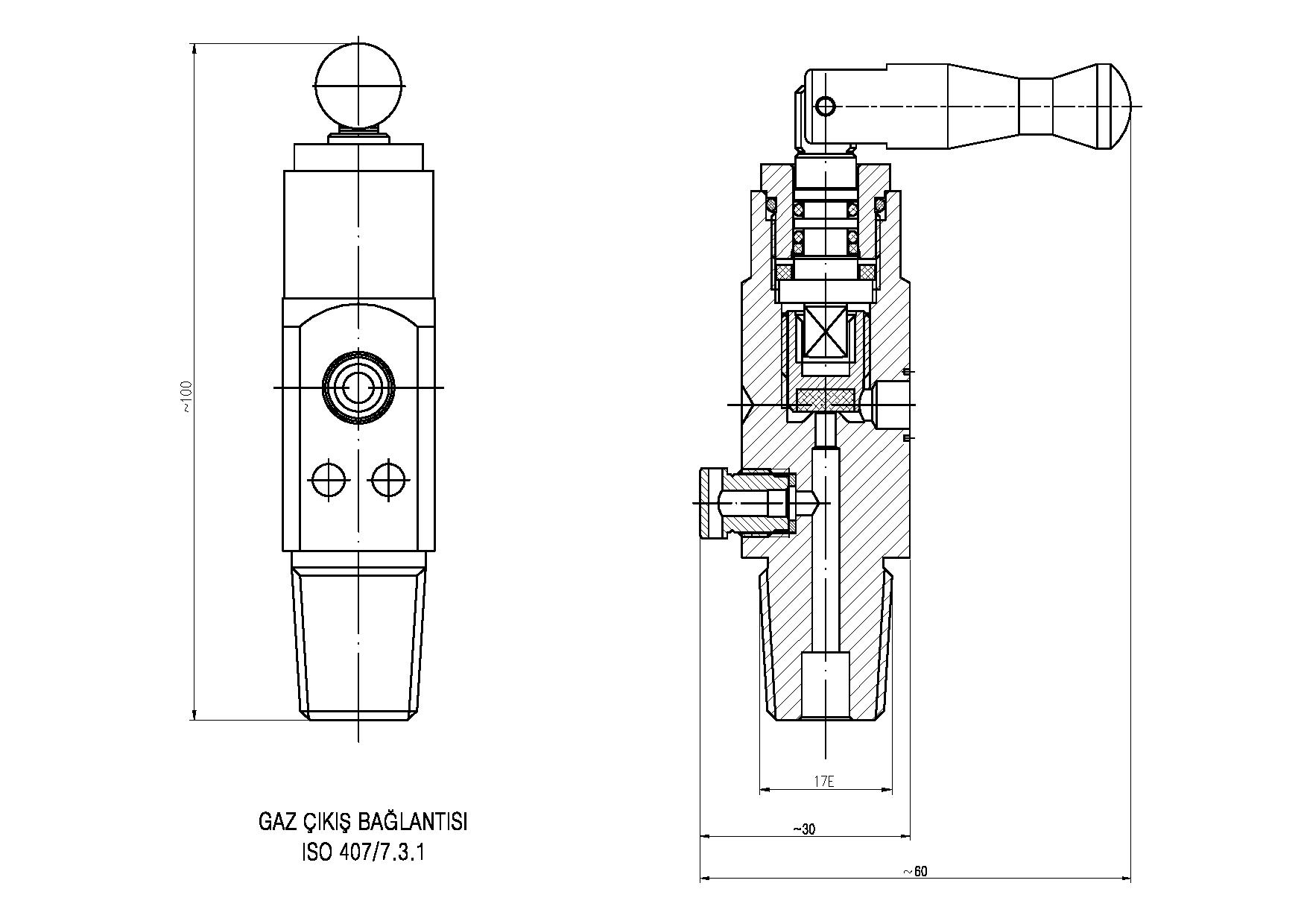

PIN INDEX OXYGEN VALVE 901.11

Code No. : 901.11
Specifications
INLET CONNECTION : 17E
OUTLET CONNECTION : ISO 407/7.3.1

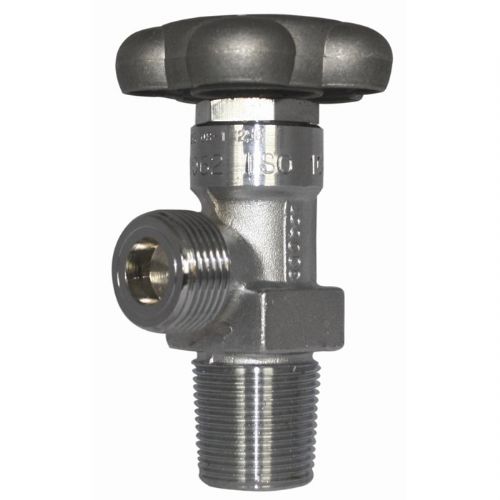

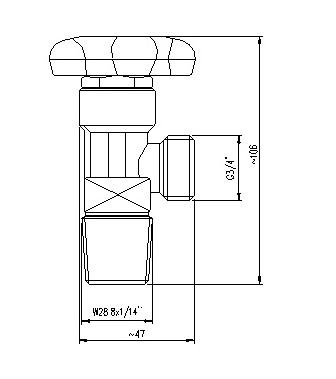

Oxygen Cylinder Valve 201.17

Code No. : 201.17
Specifications
INLET THREAD : 25E
OUTLET THREAD : G 3/4"

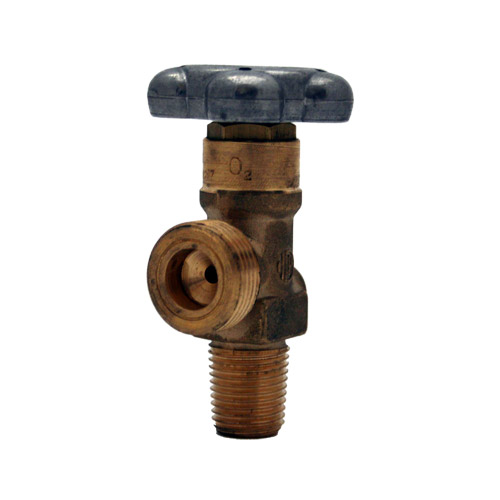

Oxygen Cylinder Valve 201.31

Code No. : 201.31
Specifications
INLET THREAD : 17E
OUTLET THREAD : G 3/4"

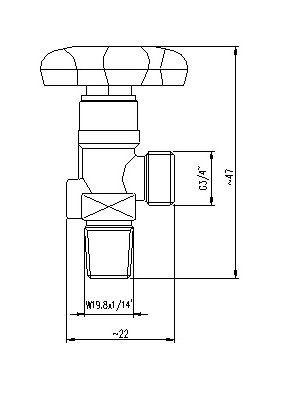

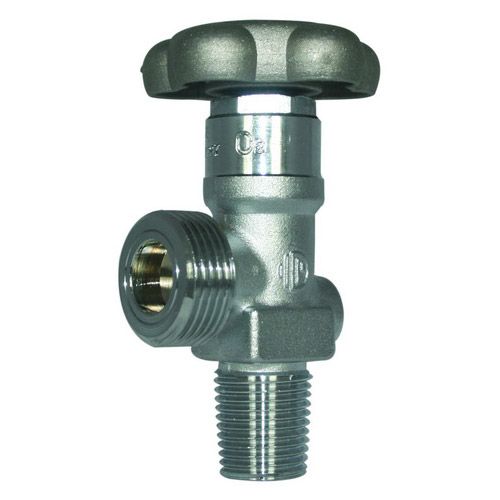

Oxygen Cylinder Valve 201.33

Code No. : 201.33
Specifications
INLET THREAD : 17E
OUTLET THREAD : G 3/4"

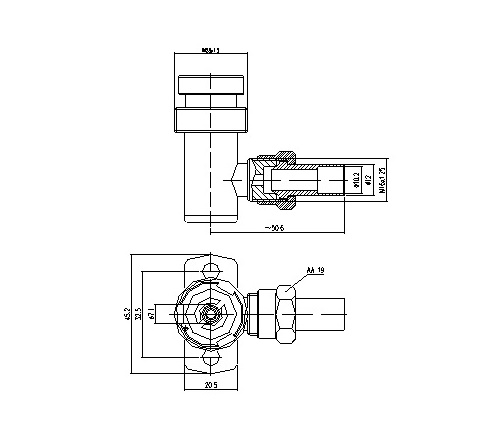

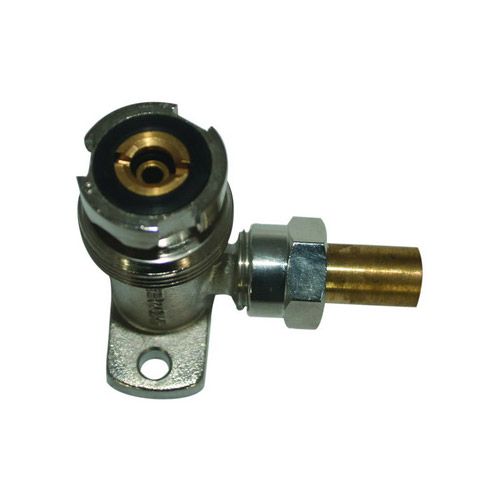

Oxygen Plug Body 118.01

Code No. : 118.01
Specifications
INLET THREAD : M 16 x 1,25
OUTLET THREAD : M 28x1.5

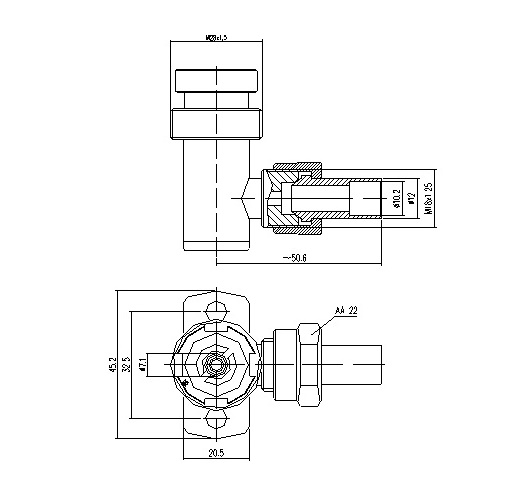

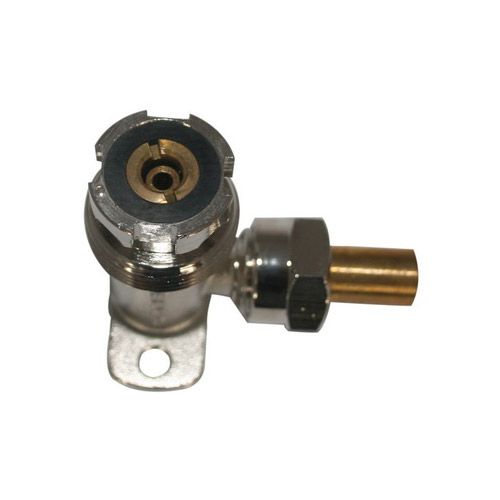

Nitrogen Plug Body 118.02

Code No. : 118.02
Specifications
INLET THREAD : M 18 x 1,25
OUTLET THREAD : M 28x1.5

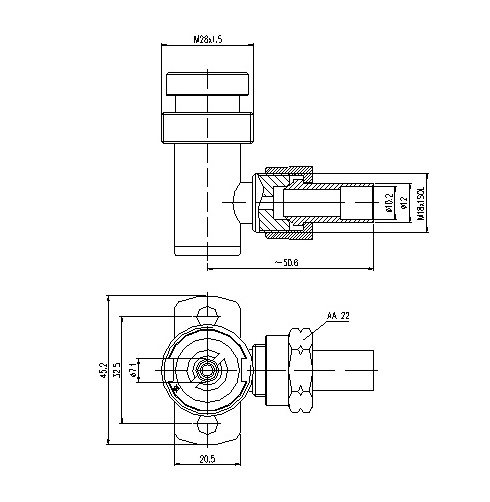

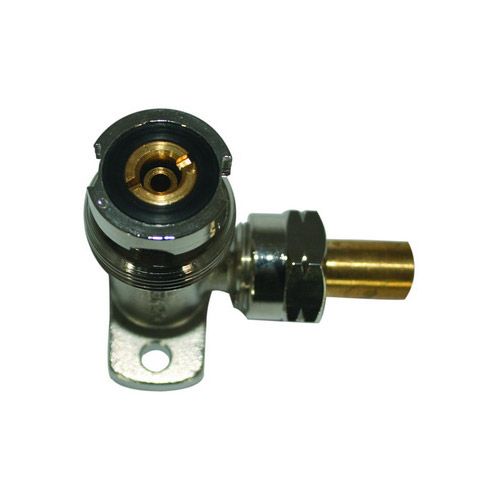

Pressured Air Plug Body 118.03

Code No. : 118.03
Specifications
INLET THREAD : M 18 x 1 left
OUTLET THREAD : M 28x1.5

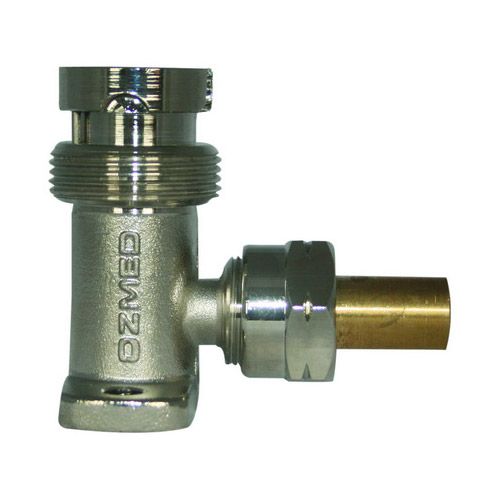

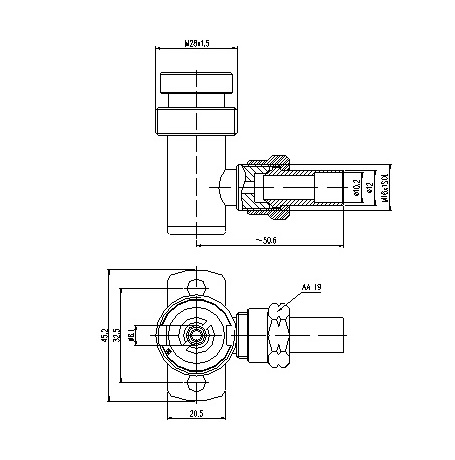

Vacuum Plug Body 118.04

Code No. : 118.04
Specifications
INLET THREAD : M 16 x 1 left
OUTLET THREAD : M 28x1.5

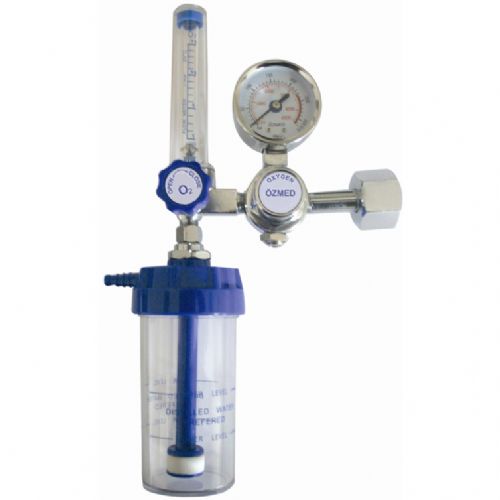

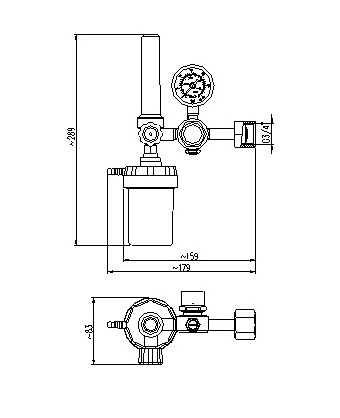

Medical Oxygen Regulator 701.50

Code No. : 701.50
Specifications
CYLINDER CONNECTION : G 3/4
GAS OUTLET : Out Diameter Ø 5 mm Sterilized Pipe
CYLINDER PRESSURE MANOMETER : 0-315 Bar
WORKING PRESSURE : 3,5 - 4 Bar
FLOW RATE : 4 - 6 lt/min
BEING USED GAS : Medical, Oxygen
