VALVES FOR CO2 EXTINGUISHERS

ÖZSOY PRES VALVES FOR CO2 EXTINGUISHERS
PRODUCTS

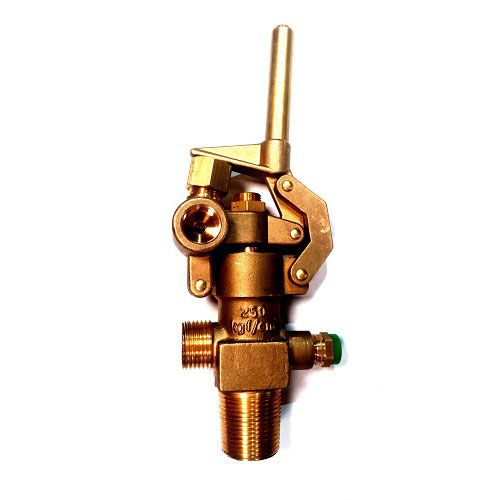

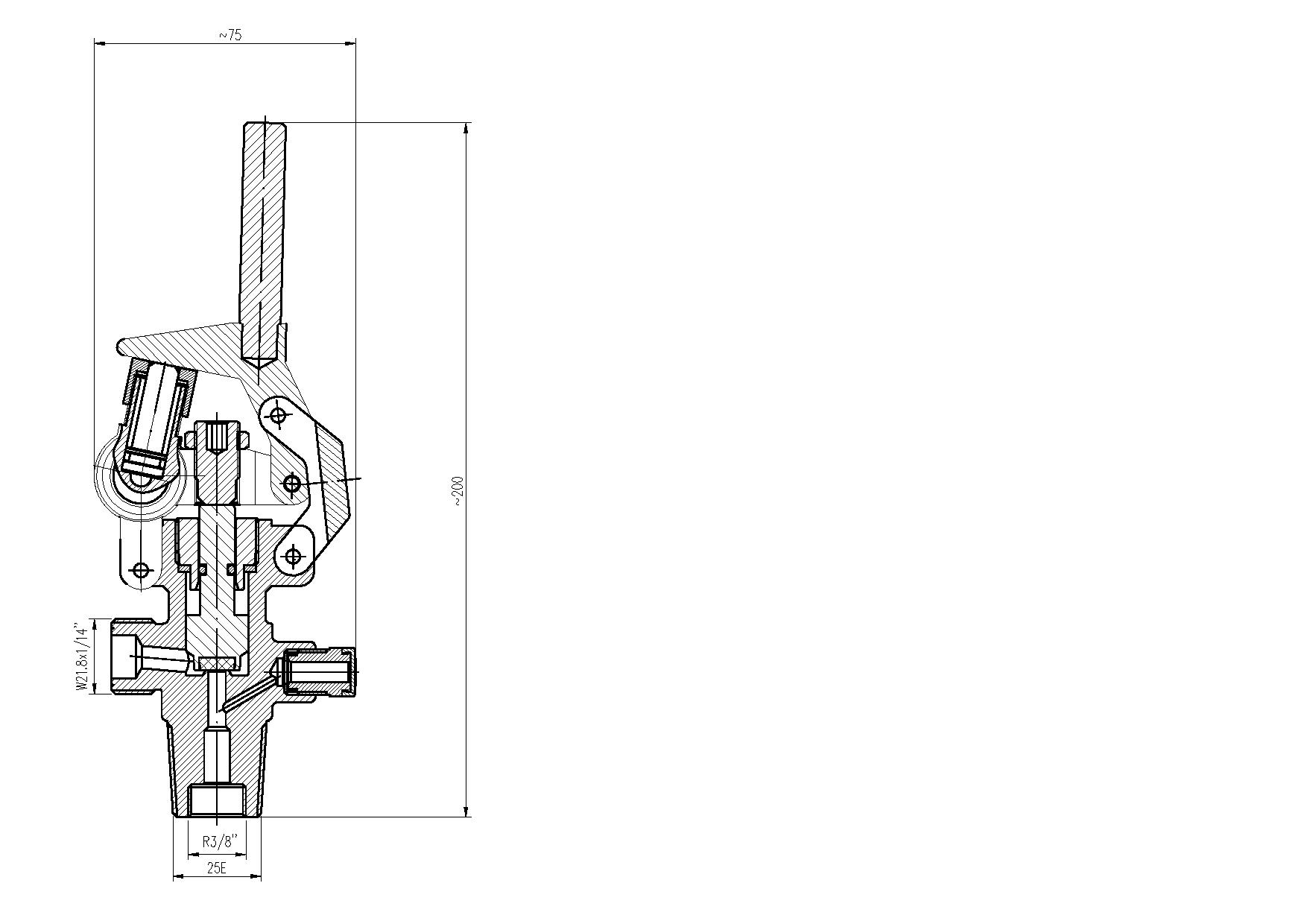

 CO2 VALVE FOR AUTOMATİC EXTİNGUİSHERS (PRESSURİZED) 513.04

Code No. : 513.04
Specifications
INLET THREAD : 25E
OUTLET THREAD : W21.8x1/14"
DIPTUBE CONNECTION : G 3/8"
BURSTING DISC : 190 BAR

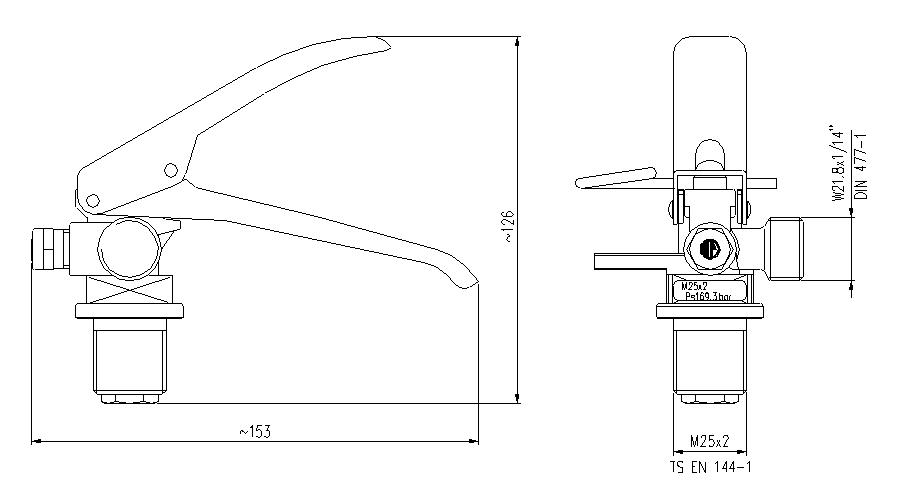

Parallel Valves for CO2 Extinguishers 512.09

Code No. : 512.09
Specifications
INLET THREAD : 25P
OUTLET THREAD : W 21.8 x 1/14
DIPTUBE CONNECTION : G 1/4
BURSTING DISC : 190 Bar

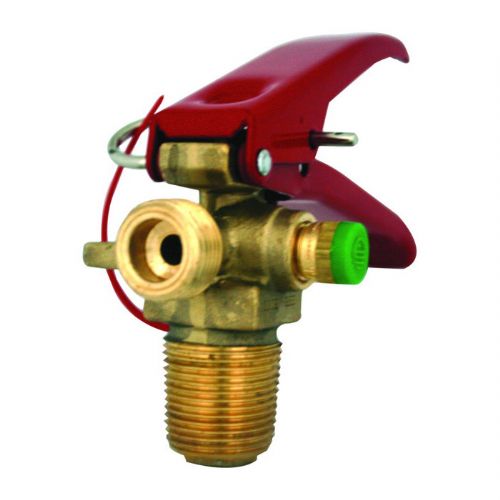

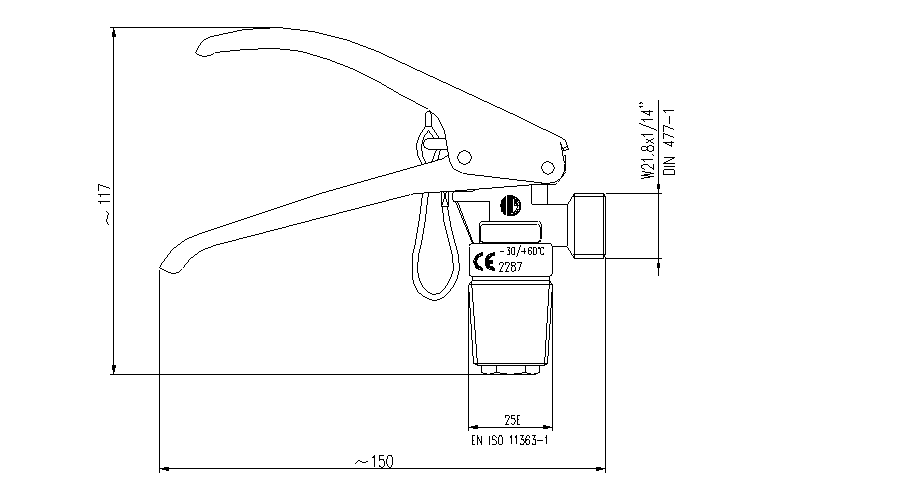

Taper Valves for CO2 Extinguishers 512.01

Code No. : 512.01
Specifications
INLET THREAD : 25E
OUTLET THREAD : W 21.8 x 1/14
DIPTUBE CONNECTION : G 1/4
BURSTING DISC : 190 Bar

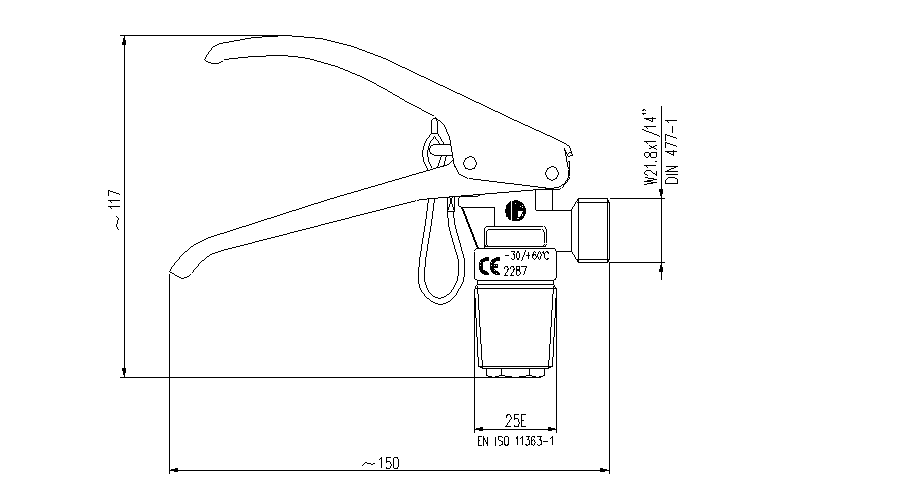

Taper Valves for CO2 Extinguishers 512.10

Code No. : 512.10
Specifications
INLET THREAD : 25E
OUTLET THREAD : W 21.8 x 1/14
DIPTUBE CONNECTION : M 10 x 0,75
BURSTING DISC : 190 Bar

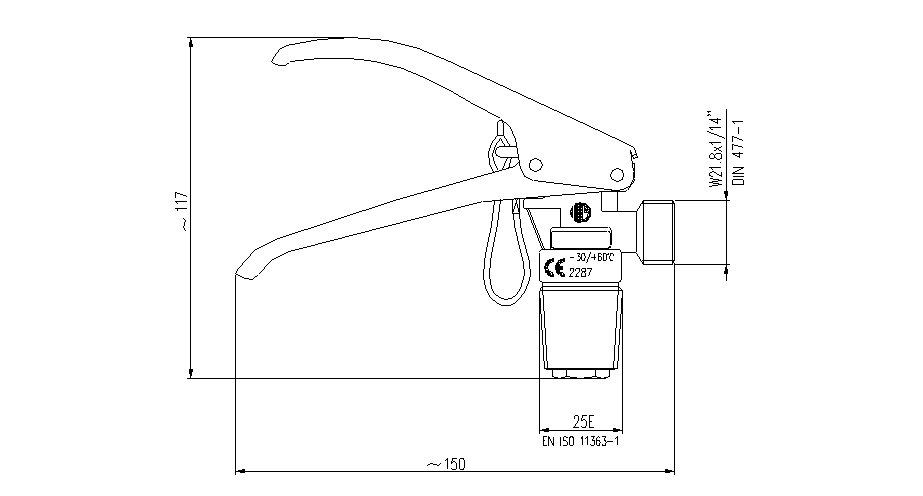

Taper Valves for CO2 Extinguishers 512.42

Code No. : 512.42
Specifications
INLET THREAD : 25E
OUTLET THREAD : W 21.8 x 1/14
DIPTUBE CONNECTION : M10x0.75
BURSTING DISC : 235 - 285 Bar

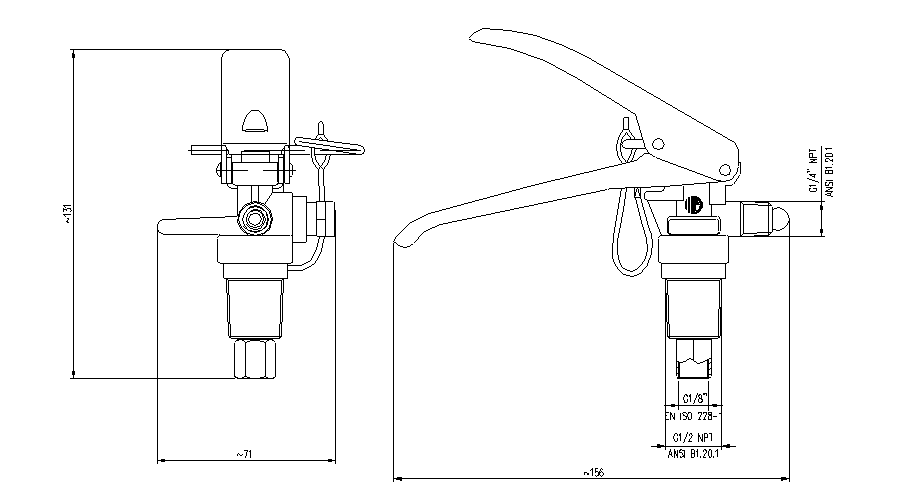

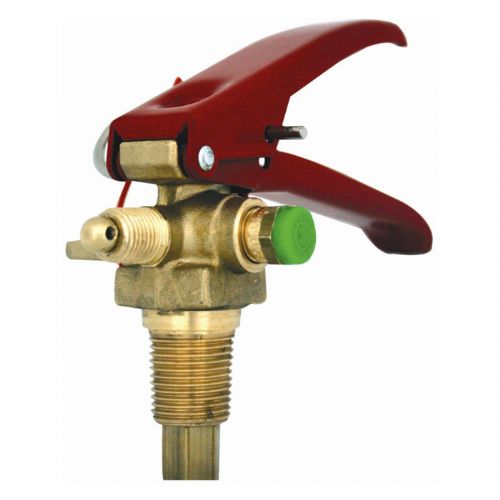

Taper Valves for CO2 Extinguishers 512.02

Code No. : 512.02
Specifications
INLET THREAD : NPT R 1/2
OUTLET THREAD : G 1/4
DIPTUBE CONNECTION : G1/8
BURSTING DISC : 190 Bar

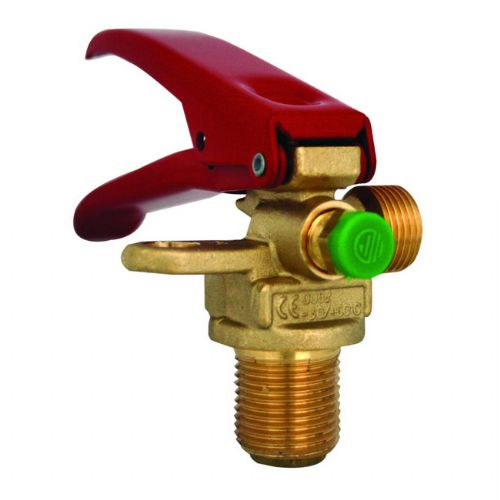

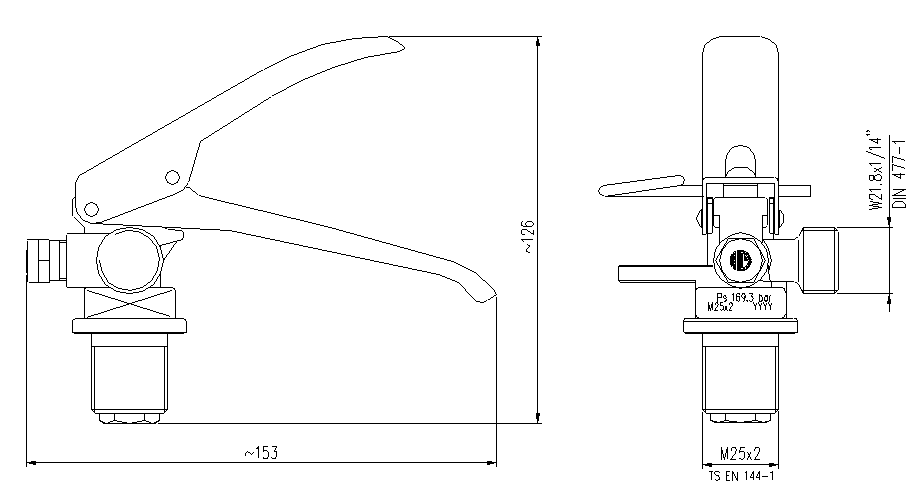

Parallel Valves for CO2 Extinguishers 512.08

Code No. : 512.08
Specifications
INLET THREAD : 25P
OUTLET THREAD : W 21.8 x 1/14
DIPTUBE CONNECTION : M 10 x 0,75
BURSTING DISC : 190 Bar

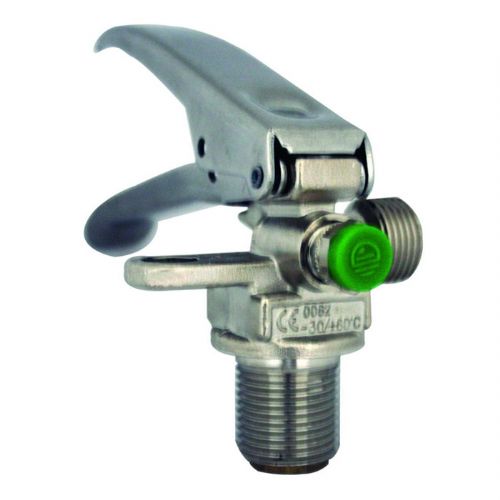

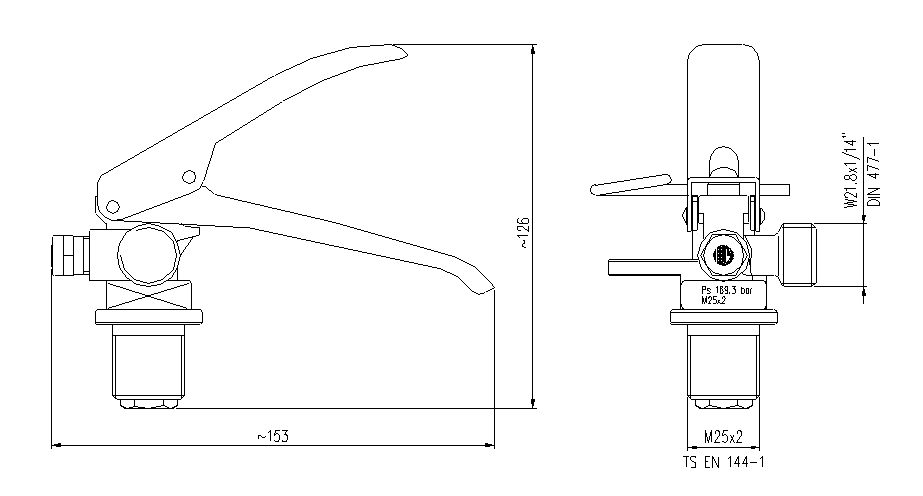

Parallel Valves for CO2 Extinguishers 512.23

Code No. : 512.23
Specifications
INLET THREAD : 25P
OUTLET THREAD : W 21.8 x 1/14
DIPTUBE CONNECTION : M 10 x 0,75
BURSTING DISC : 190 Bar

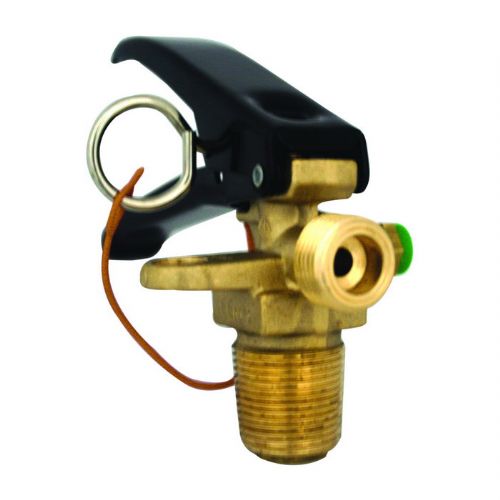

Parallel Valves for CO2 Extinguishers 512.16

Code No. : 512.16
Specifications
INLET THREAD : 25E
OUTLET THREAD : W 21.8 x 1/14
DIPTUBE CONNECTION : G 1/4
BURSTING DISC : 190 Bar

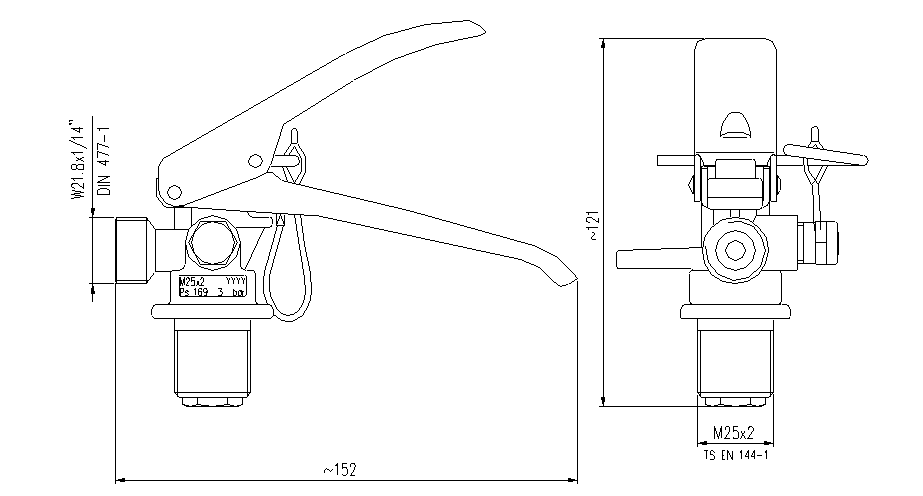

Parallel Valves for CO2 Extinguishers 512.31

Code No. : 512.31
Specifications
INLET THREAD : 25P
OUTLET THREAD : W 21.8 x 1/14
DIPTUBE CONNECTION : M 10 x 0,75
BURSTING DISC : 216 - 250 Bar

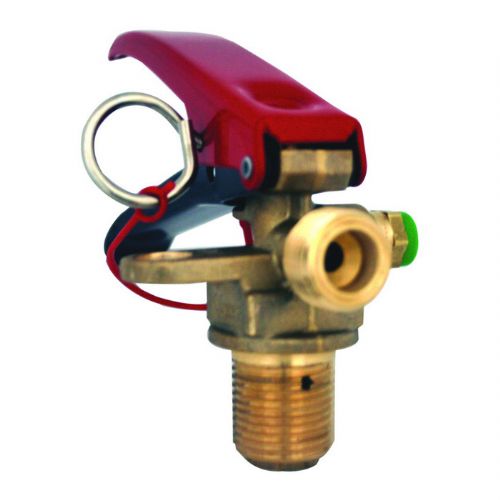

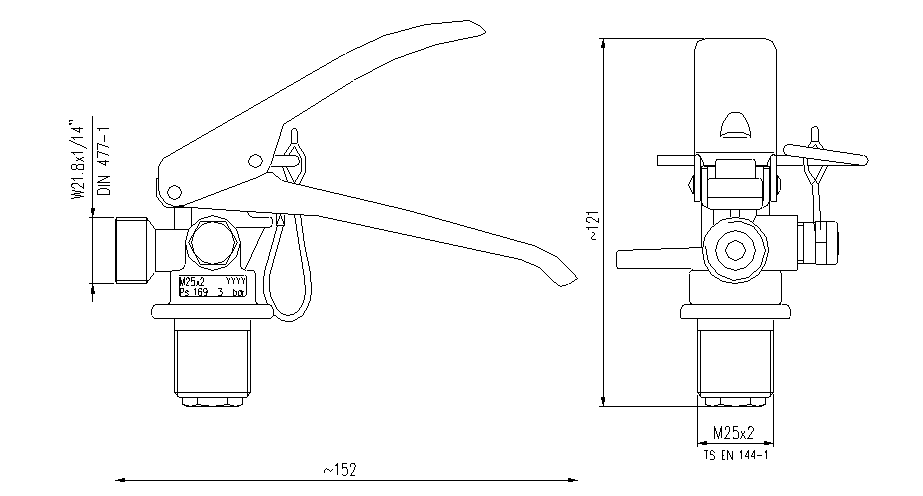

Parallel Valves for CO2 Extinguishers 512.32

Code No. : 512.32
Specifications
INLET THREAD : 25P
OUTLET THREAD : W 21.8 x 1/14
DIPTUBE CONNECTION : M 10 x 0,75
BURSTING DISC : 190 Bar

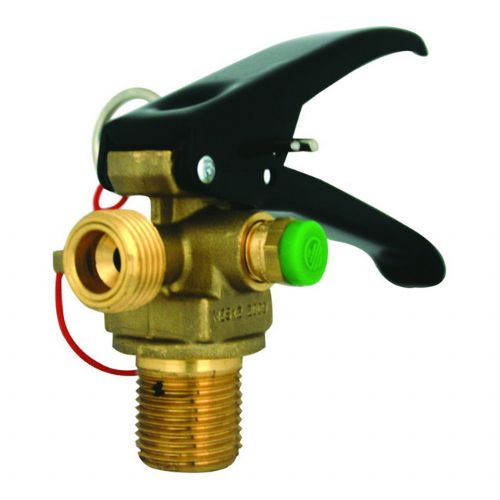

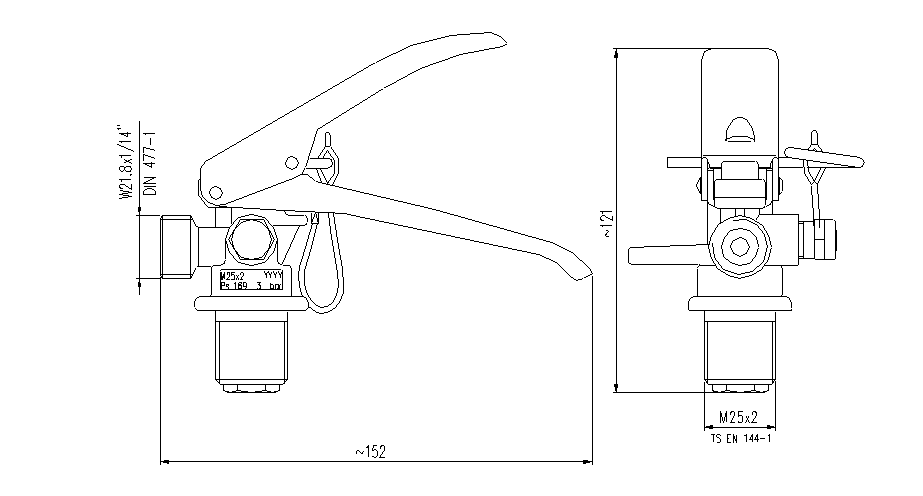

Parallel Valves for CO2 Extinguishers 512.51

Code No. : 512.51
Specifications
INLET THREAD : 25P
OUTLET THREAD : W 21.8 x 1/14
DIPTUBE CONNECTION : M 10 x 0,75
BURSTING DISC : 190 Bar

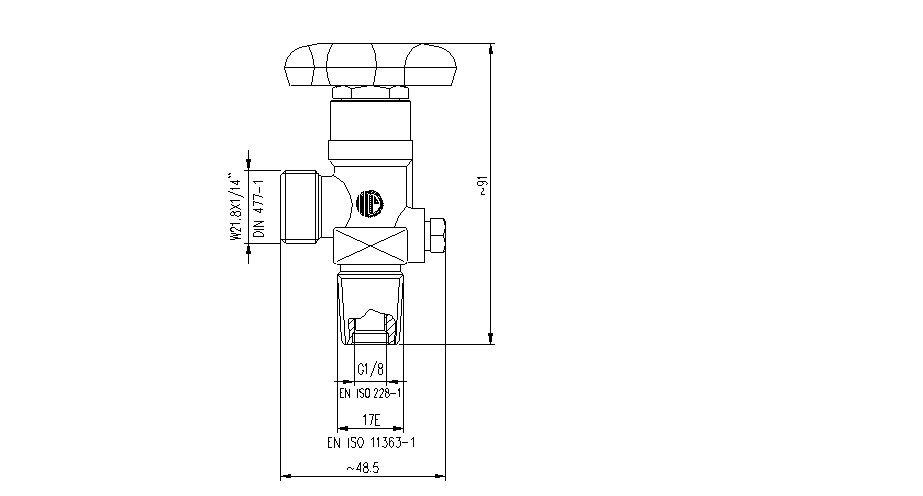

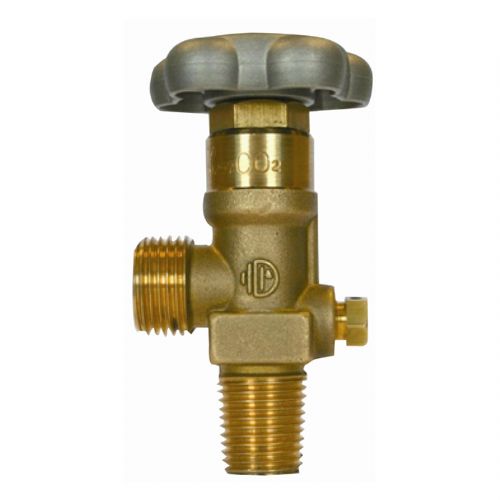

Handwheel Valve 510.12

Code No. : 510.12
Specifications
INLET THREAD : 17E
OUTLET THREAD : W 21.8 x 1/14
DIPTUBE CONNECTION : G1/8
BURSTING DISC : 190 Bar

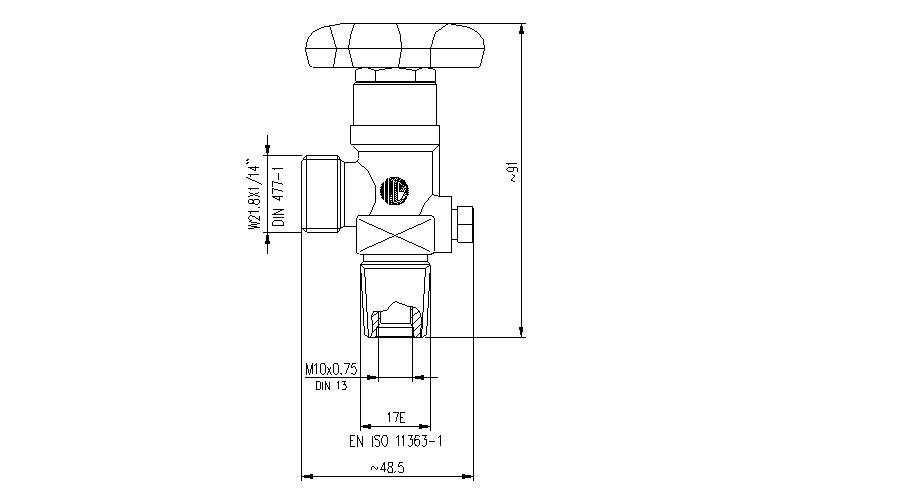

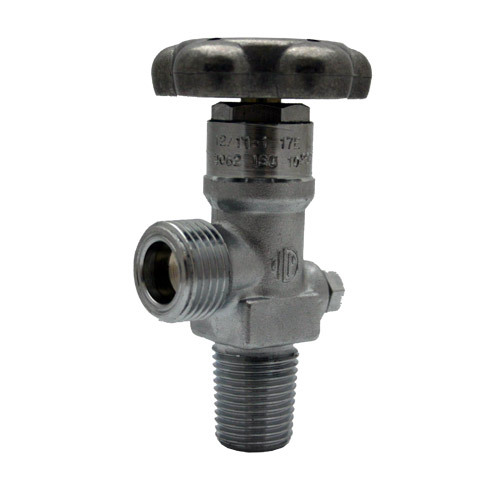

Handwheel Valve 510.14

Code No. : 510.14
Specifications
INLET THREAD : 17E
OUTLET THREAD : W 21.8 x 1/14
DIPTUBE CONNECTION : M 10 x 1
BURSTING DISC : 190 Bar
BODY : Chromium plated

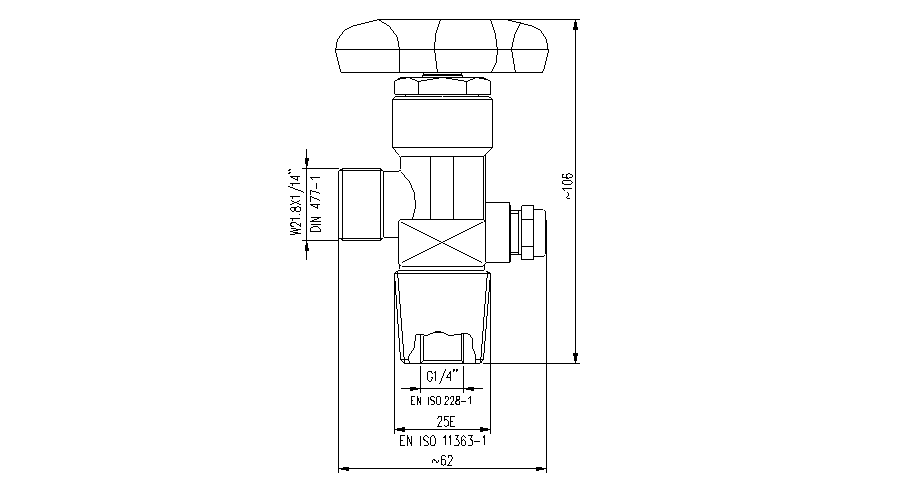

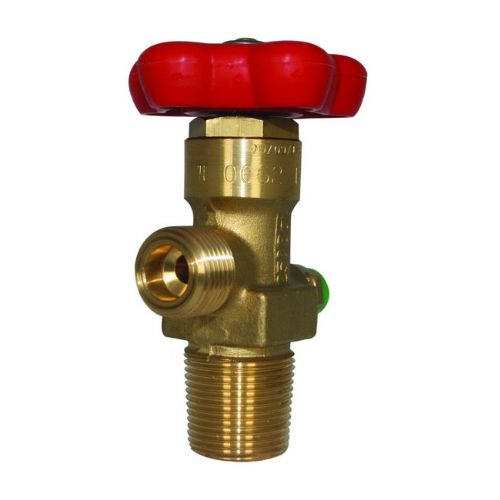

Handwheel Valve 511.14

Code No. : 511.14
Specifications
INLET THREAD : 25E
OUTLET THREAD : W 21.8 x 1/14
DIPTUBE CONNECTION : G 1/4
BURSTING DISC : 190 Bar

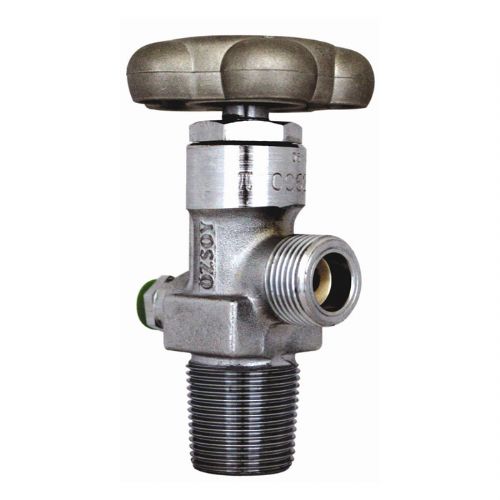

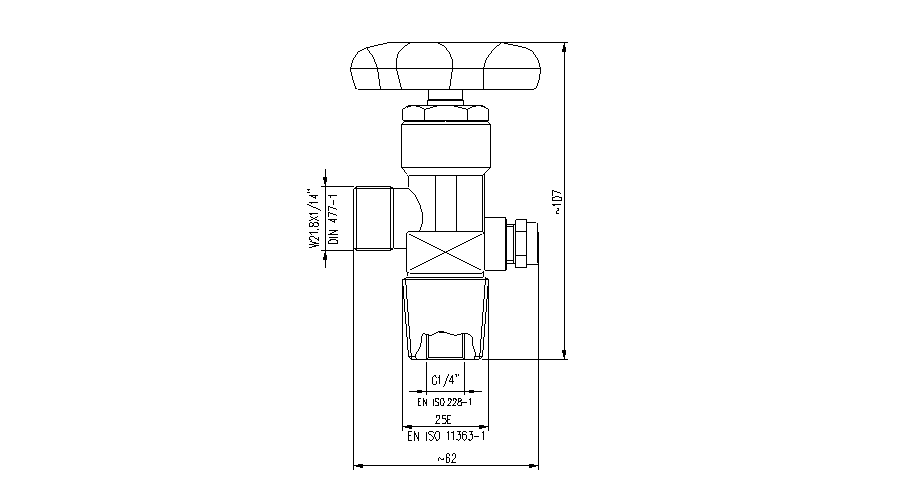

Handwheel Valve 511.16

Code No. : 511.16
Specifications
INLET THREAD : 25E
OUTLET THREAD : W 21.8 x 1/14
DIPTUBE CONNECTION : G 1/4
BURSTING DISC : 190 Bar

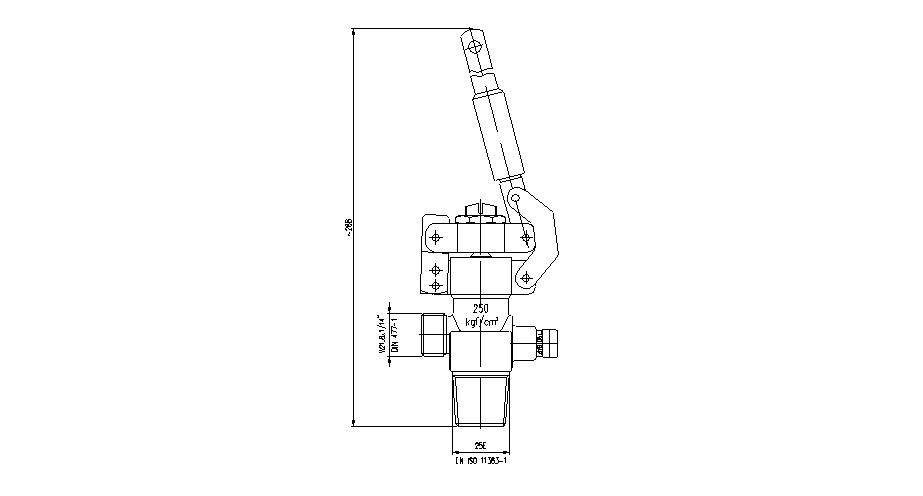

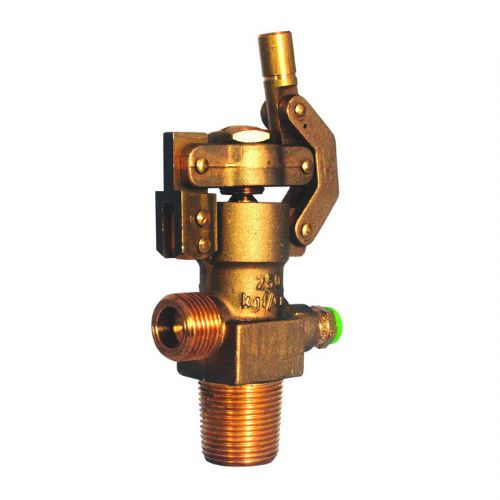

CO2 Valve For Automatic Extinguishers 513.01

Code No. : 513.01
Specifications
INLET THREAD : 25E
OUTLET THREAD : W 21.8 x 1/14
DIPTUBE CONNECTION : G 3/8
BURSTING DISC : 190 Bar

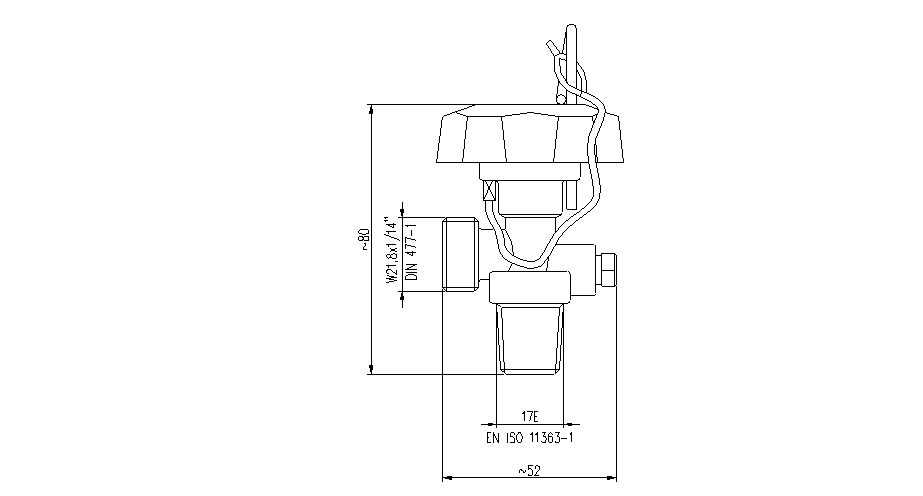

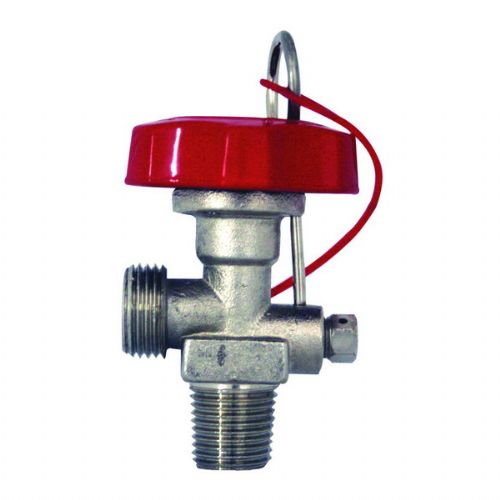

Handwheel Valve 514.01

Code No. : 514.01
Specifications
INLET THREAD : 17E
OUTLET THREAD : W 21.8 x 1/14
DIPTUBE CONNECTION : M 10 x 1
BURSTING DISC : 190 Bar
